AiM Data Hub

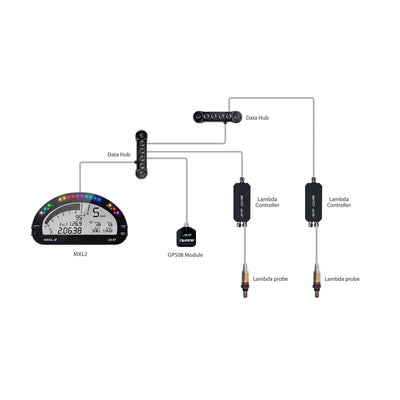

The compact AiM Data Hub, provides up to four additional CAN channels and works as an interface between the AIM Logger and its peripheral equipment. The acquisition of all essential data you need to evaluate your car performance needs the connection of many accessories to your datalogger. This implies the presence of a great number of cables but the Data Hub takes all the information you need sent to your logger with only one cable, minimizing wires overall. More Data Hubs can be connected in sequence in order to increase the number of peripherals which can be connected.

The Data Hub is available in two versions:

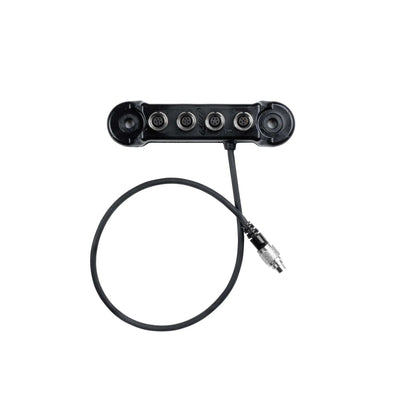

• Four Way Data Hub: recommended for data / dash loggers (MXL/MXL2/MXG/MXS/EVO4) which are powered from the vehicles 12v on-board battery supply. Available with a 40 or 150cm CAN cable.
• Two Way Data Hub (with external power connection): recommended for MyChron6. MyChron5 (and the older MyChron4) kart data logger which uses an internal battery. This data hub allows for the use of an external battery source instead of drawing power from the MyChron dash. Available only with a 40cm CAN cable. External 12v power lead 150cm length.
